Resins & Coatings Raw Materials

Polyester Resins for Powder Coatings

Epoxy Hybrid · HAA · HAA / TGIC

Polyester resins for powder coatings, including high-gloss, low-temperature-cure and matte dry-blend grades.

Compare curing systems, resin-to-crosslinker ratios, acid value, Tg and viscosity. Expand a grade for applications, curing conditions, dry-blend relationships and formulation-specific coating-film results.

Request This Product

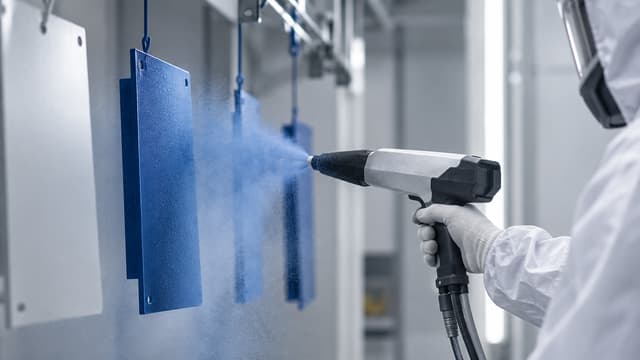

Industrial powder coating application on metal components

Find the right grade

10 matching grades


	Epoxy Hybrid	70:30	30–36	~60	4,000–6,000
Key Characteristics Balanced properties Great flow and leveling High gloss Good mechanical properties Good storage stability Applications Hybrid powder coatings Curing Conditions 180°C / 10 min Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: ≥90% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA	93:7	48–55	~68	4,500–6,500
Key Characteristics Matte dry-blend component Good decorative and mechanical properties Great leveling Great weather resistance Applications Matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G3050 ↔ G3051 — matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA	97:3	18–22	~61	6,000–8,000
Key Characteristics Matte dry-blend component Good decorative and mechanical properties Great leveling Great weather resistance Applications Matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G3050 ↔ G3051 — matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA / TGIC	95:5 HAA / 93:7 TGIC	29–35	≥62	4,000–6,000
Key Characteristics Balanced properties Good decorative and mechanical properties Applications General industrial powder coatings Curing Conditions HAA: 180°C / 10 min TGIC: 200°C / 10 min Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: ≥90% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA / TGIC	95:5 HAA / —	30–36	~64	4,000–5,000
Key Characteristics Excellent leveling and decorative properties Excellent mechanical properties High gloss Applications Powder coatings Curing Conditions 180°C / 10–15 min Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: ≥90% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA	92:8	48–54	~68	5,000–7,000
Key Characteristics Excellent leveling and decorative properties Excellent mechanical properties High gloss and Tg Low-temperature curing Applications Low-temperature-cure powder coatings Curing Conditions 160°C / 10–15 min Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: ≥90% Adhesion: ≤1 Pencil hardness: 1H–2H
	HAA	93:7	48–55	≥66	4,500–6,500
Key Characteristics Matte dry-blend component Great leveling Excellent weather resistance Applications Weather-resistant matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G9853 ↔ G9854 — weather-resistant matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H Xenon WOM: 1000 hr ΔE: ≤2.0
	HAA	97:3	18–24	≥60	6,500–8,000
Key Characteristics Matte dry-blend component Great leveling Excellent weather resistance Applications Weather-resistant matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G9853 ↔ G9854 — weather-resistant matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H Xenon WOM: 1000 hr ΔE: ≤2.0
	HAA	94:6	38–45	≥66	4,000–6,000
Key Characteristics Superdurable matte dry-blend component Excellent weather resistance with superdurability Applications Superdurable matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G9855 ↔ G9856 — superdurable matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H Xenon WOM: 2000 hr ΔE: ≤2.0
	HAA	97:3	18–24	≥60	3,000–4,000
Key Characteristics Superdurable matte dry-blend component Excellent weather resistance with superdurability Applications Superdurable matte powder coatings Curing Conditions 180°C / 15 min Dry-Blend Pair G9855 ↔ G9856 — superdurable matte dry-blend pair. These grades are paired components, not interchangeable grades. Formulation-Specific Test Performance Coating-film results for the tested formulation/system; not intrinsic guaranteed resin specifications. Coating-film thickness: 60–80 µm Gloss at 60°: <25% Adhesion: ≤1 Pencil hardness: 1H–2H Xenon WOM: 2000 hr ΔE: ≤2.0

Shared Technical Properties

Appearance: Light or slightly yellow granular
Color: ≤200 APHA
Softening Point: 105–120°C · Universal method

Packaging

25 kg polyethylene bags

Grade selection & sourcing

Discuss your coating requirement.

Share your application, substrate and target properties, including requirements beyond the listed grades.

Request This Product
